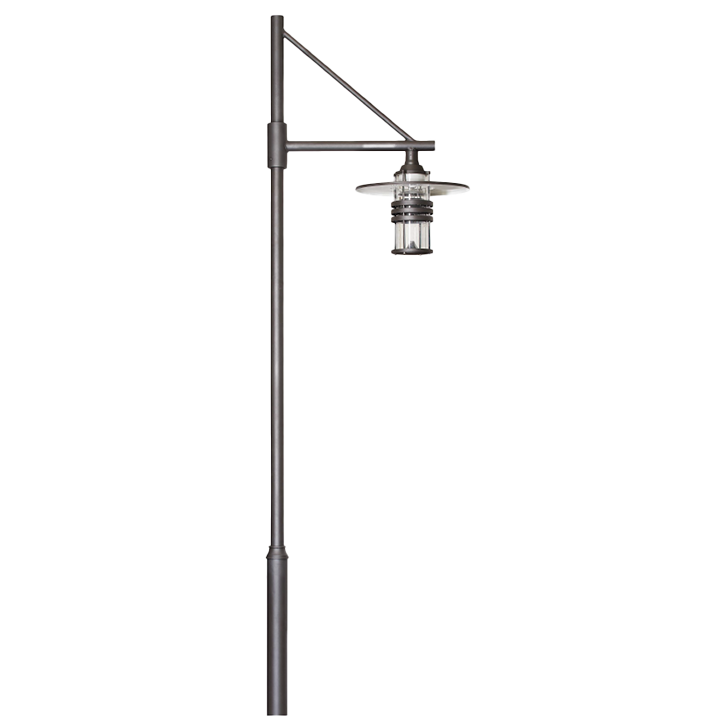

This luminaire is a suitable solution for lighting applications in medium-sized public spaces. It can be used to illuminate squares, entrance areas in front of buildings, walking paths in parks and gardens, and gathering areas.
Die-cast aluminium and polycarbonate diffuser upperhead/ aluminium inner reflector and pole body made of steel tube/ galvanized metal anchorage
| Model | OSDC ID 44 83 DA 1100 65 RF 245 | OSDC ID 44 83 DA 2200 65 RF 245 |
| Power | 44W | 2x44W |
| Lumen | 4000lm | 2x4000lm |
| Dimensions | 635x4000 mm 1100x4000 mm | 2200x4000 mm |
※ Please refer to technical information page for detailed specification including measurement.
(PDF Viewer, PDF Download, Auto-CAD)
| Model | Power | Lumen | Length | Dimension | Lamp | Color Temperature |
| OSDC.ID.44.83.DA.1100.65.RF.245 | 44W | 4000lm | 4000 mm | 635/1100 mm | Middle Power LED | 2700K, 3000K, 4000K, 6500K |
| OSDC.ID.44.83.DA.2200.65.RF.245 | 2x44W | 2x4000lm | 4000 mm | 2200 mm | Middle Power LED | 2700K, 3000K, 4000K, 6500K |
